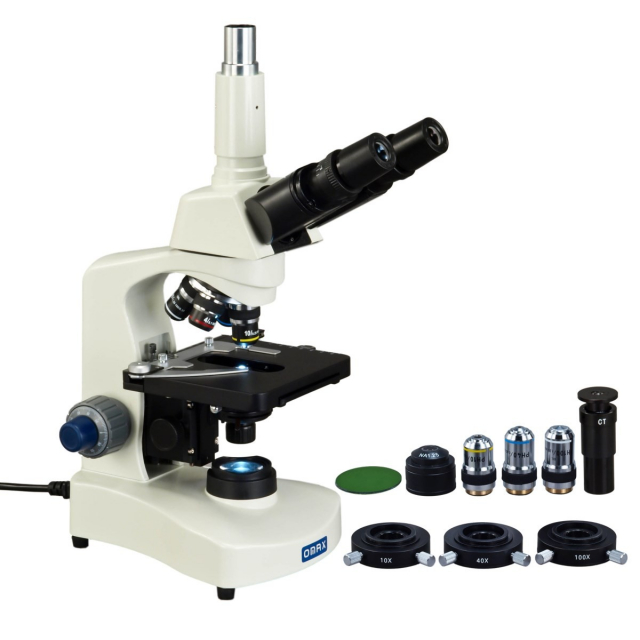

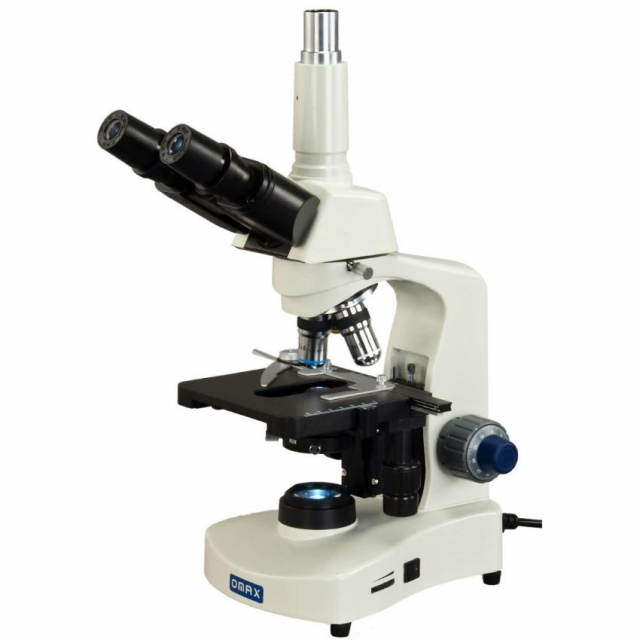

OMAX M8311Z-PHD 40X-2500X Phase Contrast LED Trinocular Microscope

OMAX, M8311Z-PHD, 40X-2500X Phase Contrast LED Trinocular Biological Siedentopf Microscope

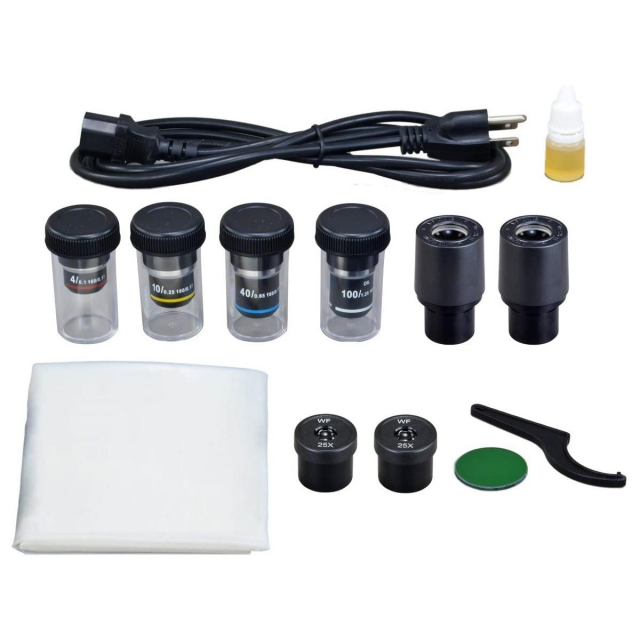

M8311Z-PHD Includes Only:

• One trinocular siedentopf microscope head
• One photo tube for digital cameras
• One microscope stand and base
• Four objectives: 4X, 10X, 40X, and 100X
• A pair of eyepieces WF10X
• A pair of eyepieces WF25X
• One bottle of immersion oil
• One power cord (US and Canada standard)
• One focus tension adjustment wrench
• One dust cover
• Color filter: green
• Extra fuse (in the fuse holder of the microscope)

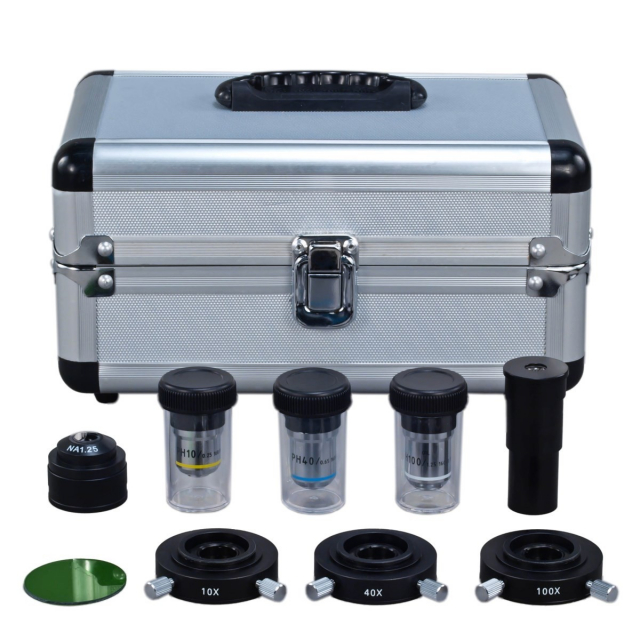

• Phase contrast kit:
  • 1 centering telescopic eyepiece
  • 3 phase contrast objectives: 10X, 40X, and 100X
  • 3 separated phase contrast plates for 10X, 40X, and 100X light passing
  • 1 NA1.25 phase contrast condenser
  • 1 green filter
  • 1 aluminum phase contrast storage box

The trinocular compound siedentopf LED microscope provides phase contrast microscope system and brightfield microscope system. The compound microscope features an optical system for observing images through eyepieces and an adjustable trinocular port. It offers six levels of brightfield magnification from 40X to 2500X. The phase contrast microscope can improve the images of transparent and colorless objects, which are hard to see or invisible in an ordinary microscope. This phase contrast compound microscopy is widely used clinical, biological, research and schools, specially for observing live cells.

Features:

• Phase contrast microscope system for viewing live cell cycle
• One NA1.25 phase contrast condenser with three (10X, 40X, and 100X) condenser annular plates
• Replaceable 3W LED transmitted light with adjustable intensity

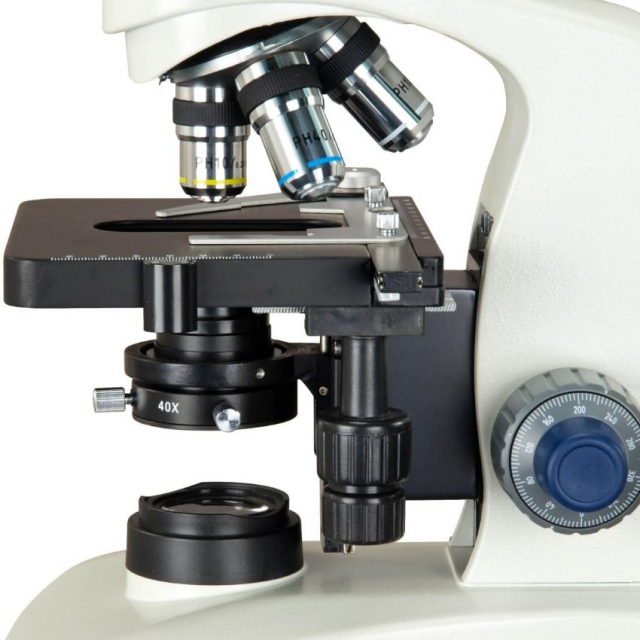

• Large double layer mechanical stage and coaxial coarse and fine focus knobs

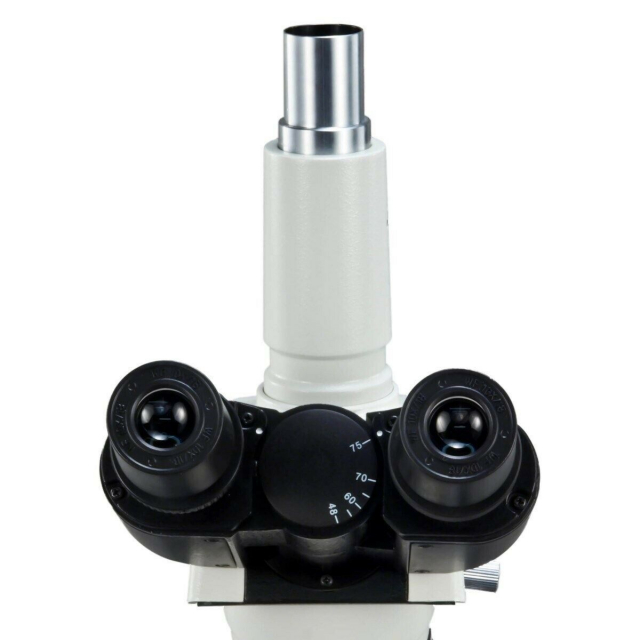

• 30 degree inclined 360 degree rotatable siedentopf trinocular viewing head
• Solid metal base and stand
