| Microscope Type | Compound |
| Magnifying Type | Multi-Power |
| Specialized | EPI-Fluorescence |
| Application | Clinic, Veterinary, Laboratory |
| Magnification Power | 40X-100X-250X-400X-1000X-2500X |
| Optics | Achromatic, Plan, Infinity |
| Field View | No |
| Head Type | Trinocular |
| Objective Power | 4X, 10X, 40X, 100X |
| Objective Size | 20 mm |
| Eyepiece Power | 10X, 25X |
| Eyepiece Size | 23 mm |
| Stage | Two-layer Mechanical Stage |
| Lighting Configuration | Transmitted |
| Light Type | LED |
| Light Power | 3W |
| Eyepiece | - WF10X (18mm field of view)
- P16X
- WF25X
|
| Fluorescence Free Objective | - FLUOR 4X/0.10, 160/0.17
- FLUOR 10X/0.25, 160/0.17
- FLUOR 40X/0.65, 160/0.17, spring
- FLUOR 100X/1.25,160/0.17, spring, oil
|

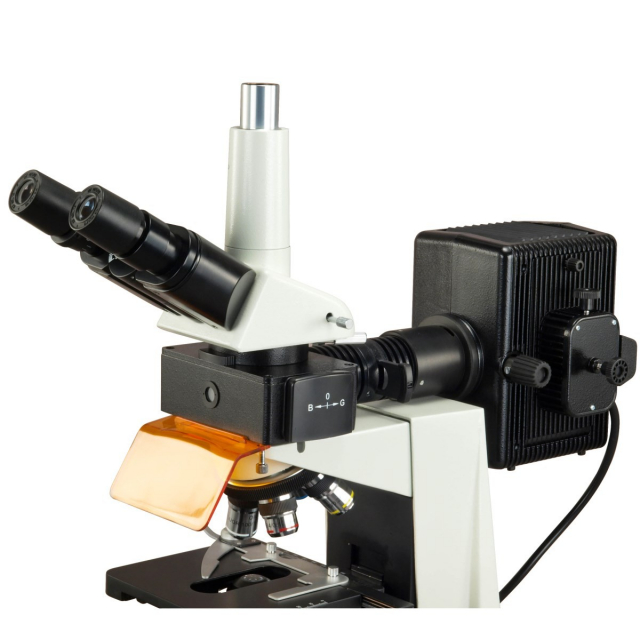

| Viewing Head | - Siedentopf trinocular
- Rotatable
- Anti-mould
- 30°inclined
- 360° swiveling
- Compensation free interpupillary distance adjustment
|
| Interpupillary Distance | Adjustment 2-3/16" - 3" (55mm - 75mm) |
| Diopter | Adjustable on left eyepiece tube |
| Nosepiece | Quadruple, reversed, with wide knurled grip for easy operation |
| Stage Mechanical, Double Layer | - Stain resistant surface
- Dimension 140mm x 160mm ( 5-1/2" x 6-5/16" ), large for two slides
- X-Y stroke: 70mm x 50mm ( 2-3/4" x 2" )
|
| Focusing | - Coaxial coarse and fine focus knobs on both sides
- Focus tension adjustable
- Focusing stroke: 30mm ( 1-3/16" )
- Division of fine focusing: 0.002mm
|
| Transmitted Illumination | - 6V/20W halogen bulb
- Intensity adjustable
- NA1.25 Abbe condenser, rack and pinion focusing adjustment
- Iris aperture diaphragm
- Color filter, swing in and out of the light path
|

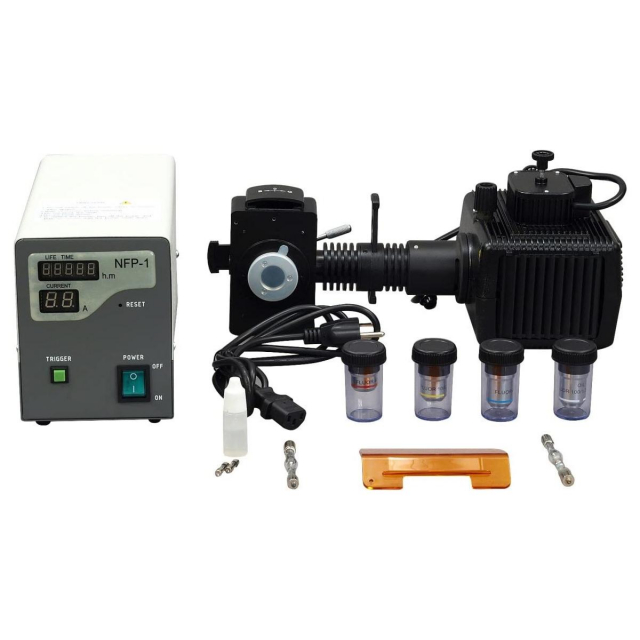

| EPI-fluorescent Illumination | - Power supply: 100W, 100-240V, with digital displays for Life Time (h.m) and Current (A)
- 100W HBO ultra Hi-pressurer spherical Mercury lamp, center adjustable
- Built-in light collector lenses, position is adjustable
- Light shutter included
- Two exciting light waves: blue light and green light
- Fluorescent filter slider: three positions of blue, green and transmitted light
- Blue filters: Exciting 410 - 490 nm, Barrier (Emission): 515 nm
- Green filters: Exciting 490 - 540 nm, Barrier (Emission): 590 nm
- UV shield included
- Fluorescence free immersion oil included
|

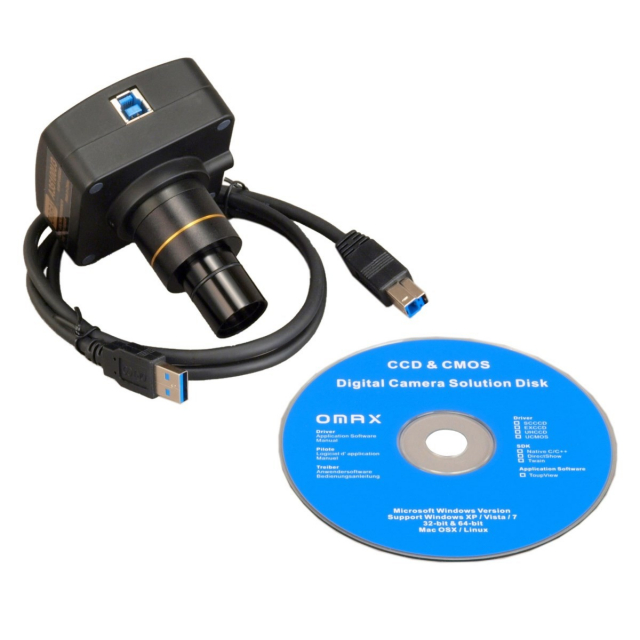

| Digital Camera | - True color 3584x2748 pixels (10M pixels)
- Super speed USB 3.0 connection
- 0.5X reduction lens to get larger field of view
- 0.01 mm calibration slide: 1mm/100 division
- Frame speed: 7.2fps at 3584x2746, 25fps at 1792x1372
- Software compatible with Windows, Mac OS X and Linux operating systems
- Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images
- USB 3.0 cable included
|
| Power Supply | 110V/60Hz (USA and Canada) |
| Shipping Weight | 12 kg ( 27 lbs ) and 7 kg ( 15 lbs ) |
