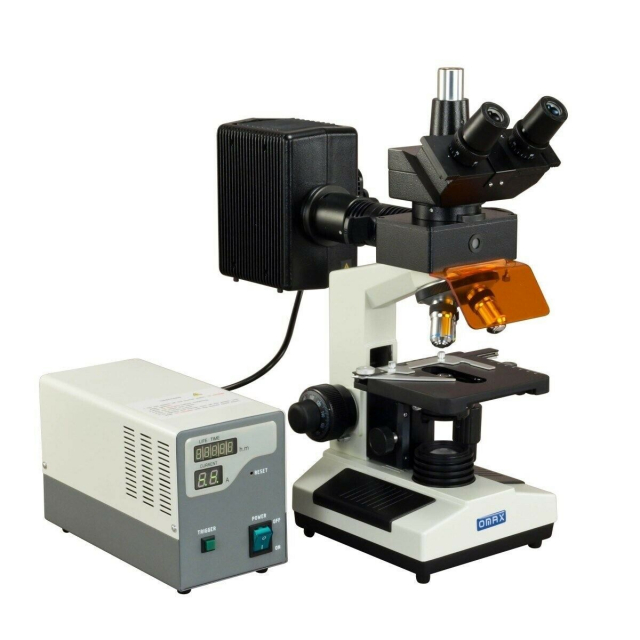

Microscope Type | Compound |
Magnifying Type | Multi-Power |
Specialized | EPI-Fluorescence |
Application | Clinic, Veterinary, Laboratory |
Magnification Power | 40x, 64x, 100x, 160x, 250x, 400x, 640x, 1000x, 1600x, 2500x |
Optics | Achromatic, Plan, Infinity |
Field View | No |
Head Type | Trinocular |
Objective Power | 4X, 10X, 40X, 100X |
Eyepiece Power | 10X, 25X |
Lighting Configuration | Transmitted |
Light Type | Halogen, Mercury-vapor |
Number of Light Bulbs | 2 |
Microscope Head | - Trinocular viewing head: anti-mould, 45°Inclined 360° swiveling, compensation free
- Sliding interpupillary adjustment, range 2-3/16" - 3.0" (55 mm-75 mm)
- Nosepiece: revolving, quadruple
- Adjustable diopter ring on both ocular tubes
- Photo tube: Inner diameter 23.2mm, height adjustment range: 3/4" (18 mm)
|
Eyepiece | - WF10X (18mm field of view)
- P16X
- WF25X
|

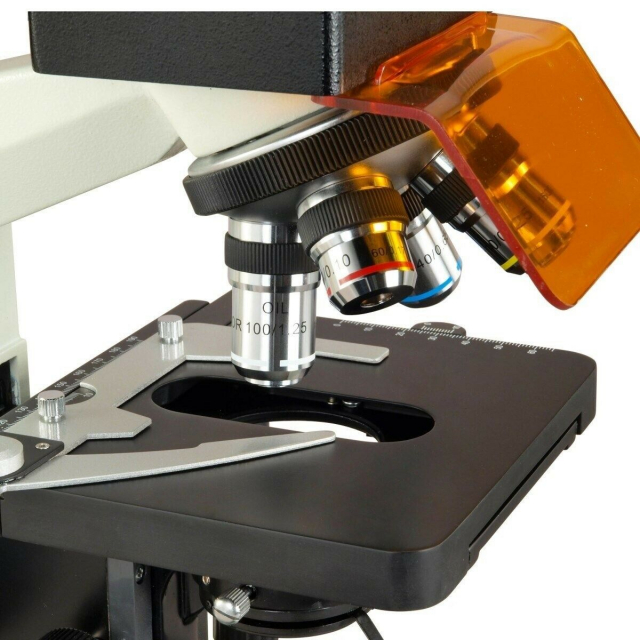

High Quality Fluorescence Objectives | - FLUOR 4x (0.1 NA)
- FLUOR 10x (0.25 NA),
- FLUOR 40x (0.65 NA, Spring),
- FLUOR 100x (1.25 NA, Spring,Oil)
|
Condenser | - NA1.25 Abbe condenser
- Built-in iris aperture diaphragm
- Built-in swing-out filter holder
- Rack and pinion adjustment
|
Focusing | - Coaxial coarse and fine focus knobs on both sides
- Tension adjustable
- Focusing stroke: 1-3/16" (30mm)
- Division of fine focusing: 0.002 mm
|
Stages | - Mechanical double layer stage
- Stain resistance
- Large size, can hold two slides
- Dimensions: 5-1/2" x 5-1/2" (140 mm x 140 mm)
- Traveling range (X-Y stroke): 3" x 2" (75mm x 50mm)
- Stage upward moving lock protects objectives and slides
|
Transmitted Illumination | - Power supply: 100V~240V 50/60Hz worldwide range (US and Canada plug)
- 6V/20W halogen bulb
- Intensity adjustable
|
EPI-fluorescent Illumination | - Power supply: 100W, AC 100-240V with digital displays for Life Time (h.m) and Current (A)
- 100 W HBO ultra Hi-pressure spherical Mercury bulb, center adjustable in lighthouse
- Built-in condenser, position adjustable
- Fluorescence blue and green filter cubes in a sliding assembly
- Epi-Fluorescence light path control: block/open
- Three-position sliding filter assembly: blue filter, green filter, and transmitted brightfield illumination
- Blue exciting filter: 410 - 490 nm, barrier (emission) filter: 515 nm
- Green exciting filter: 490 - 540 nm, barrier (emission) filter: 590 nm
- Protection barrier (suppression filter or front light baffle to resist the ultraviolet light
- Fluorescence free immersion oil
|
Power Supply | 17" x 11" x 7-1/2" (43cm x 28 cm x 19 cm) |
Shipping Weight | 15 lbs (7 kg) and 15 lbs (7 kg) |
