Buy OMAX M83EZ-C30U, 40X-2500X Trinocular Microscope with 3MP USB Camera

info@PrimeLabMed.com

1-855-590-6919
1-908-282-3482 (Intl.)

Options and Related Products

Type:: Type: Trinocular Microscop with 3MP USB Camera

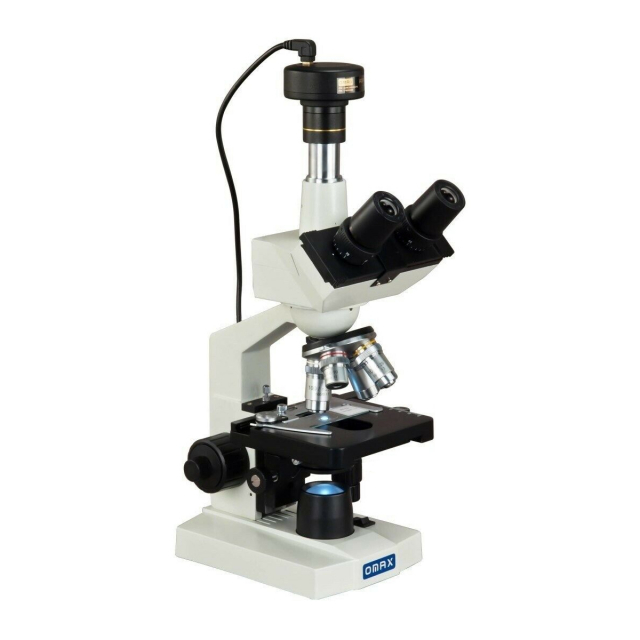

OMAX, M83EZ-C30U, 40X-2500X Digital LED Trinocular Lab Compound Microscope with 3MP USB Camera

M83EZ-C30U Includes Only:

Trinocular microscope
(4) DIN objectives 4X, 10X, 40X, 100X
A pair of eyepieces WF10X
A pair of eyepieces WF25X
A bottle of Immersion oil
AC adapter (US and Canada standard)
Dust cover
Color filter
3MP digital camera
0.5X reduction lens
1 CD including driver, software and user's instruction
0.01mm calibration slide (stage micrometer)
USB cable

ThisOMAX digital LED trinocular compound microscope offers six levels of magnification power: 40X-100X-250X-400X-1000X-2500X. The 3MP (2048x1536 pixels) USB digital imaging system that captures still microscope images and live video on computer. Software compatible with windows, Mac OS and Linux operating system can also be used to make measurements. This type of digital compound microscopy is perfect for teaching demonstration and clinical examination, laboratories and advanced applications.

Features:

3MP (2048x1536 pixels) color digital camera with 0.5X reduction lens and 0.01mm calibration slide
Trinocular viewing head with sliding adjustable interpupillary distance
Double layer mechanical stage and coaxial coarse and fine focus knobs on both sides
NA1.25 Abbe condenser with iris diaphragm and filters
Variable intensity LED transmitted illumination
Metal mechanical components

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Return and Warranty

Please note that return requests for OMAX items must be submitted within 14 days after the delivery date.

Technical Details

Reviews

Microscope Type

Compound

Magnifying Type

Multi-Power

Magnification Power

40X-100X-250X-400X-1000X-2500X

Optics

Achromatic

Field View

Head Type

Trinocular

Objective Power

4X, 10X, 40X, 100X

Eyepiece Power

10X, 25X

Eyepieces

Widefield WF10X/18 and WF25X

Objectives

Achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil)

Viewing Head

45° Inclined 360° swiveling trinocular

Interpupillary Distance

Sliding adjustable 2-3/16" ~ 2-15/16" (55mm ~ 75mm)

Diopter

Adjustable on both eyepiece tubes

Nosepiece

Revolving quadruple

Stage

Mechanical double layer
Size: 4-1/2"x 4-15/16" (115mm x 125mm)
X-Y stroke (travel range): 2-13/16" x 1-3/16" (70mm x 30mm)

Photo tube adjustment range

5/8" (15mm)

Focus

Coaxial coarse and fine focus knobs on both sides
Rack and pinion adjustment
Tension control

Condenser and Diaphragm

NA1.25 Abbe condenser with iris diaphragm

Lighting Configuration

Transmitted, intensity adjustable

Light Type

LED

Digital Camera

True color color 2048x1536 pixels (3M pixels)
0.5X reduction lens to get larger field of view
0.01 mm calibration slide: 1mm/100 division
Frame speed: 8fps at 2048x1536, 22fps at 1024x768, 43fps at 680x510
Software compatible with Windows XP/Vista/ 7 (32/64-bit), Mac OS and Linux operating system
Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images

Power Supply

AC/DC adapter, 100V-240V (UL approved)

Dimension of Microscope

14-1/4" x 9-1/16" x 7-1/8" (36cm x 23cm x 18cm)

Package Weight

11 lbs (5 kg)
