Type:: Type: Binocular Compound Biological Microscope

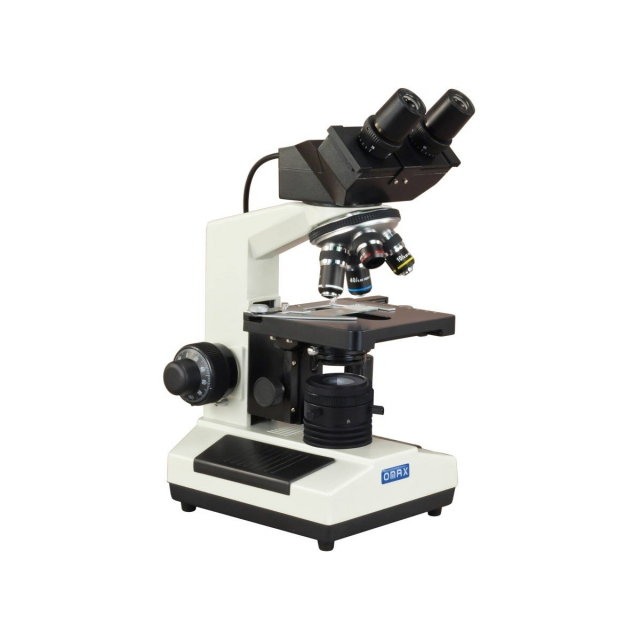

OMAX, MD827Z30, 40X-2500X Built-in 3.0MP Digital Camera Binocular Compound Biological Microscope

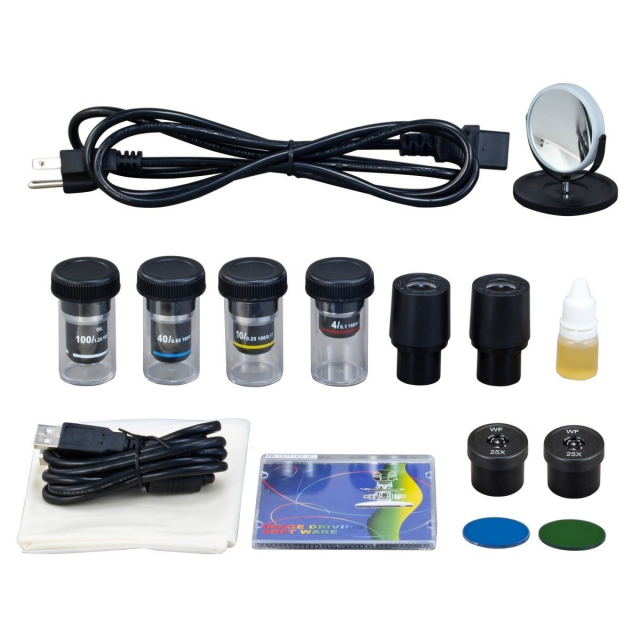

MD827Z30 Includes Only:

Digital binocular microscope head
Microscope stand
4 objectives: 4x, 10x, 40x, 100x
A pair of WF10X/18
A pair of WF25X
A bottle of Immersion oil
Power cord (US and Canada standard)
Dust cover
Color filters
Extra halogen bulb (6V/20W)
Extra fuses
Mirror
CD (camera driver and software)
USB2.0 cable

This digital compound binocular biological microscope allows for viewing through the eyepieces and use of the digital camera simultaneously. It offers six magnification levels between 40X and 2500X. The 2048 x 1536 pixels USB digital imaging system that captures still microscope images and live video on computer. Software compatible with Windows can also be used to make measurements.

Features:

Built-in 2048x1536 pixels (3.0MP) USB digital camera with advanced software applications

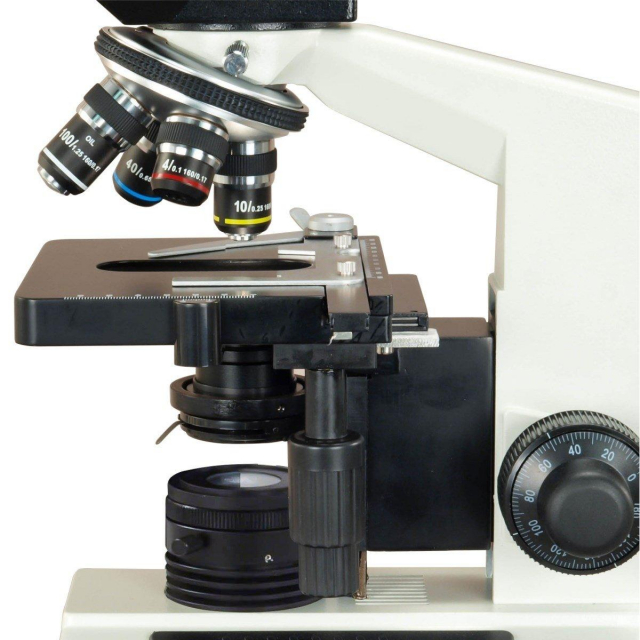

Double layer mechanical stage with NA1.25 Abbe condenser
Coaxial coarse and fine focus knobs

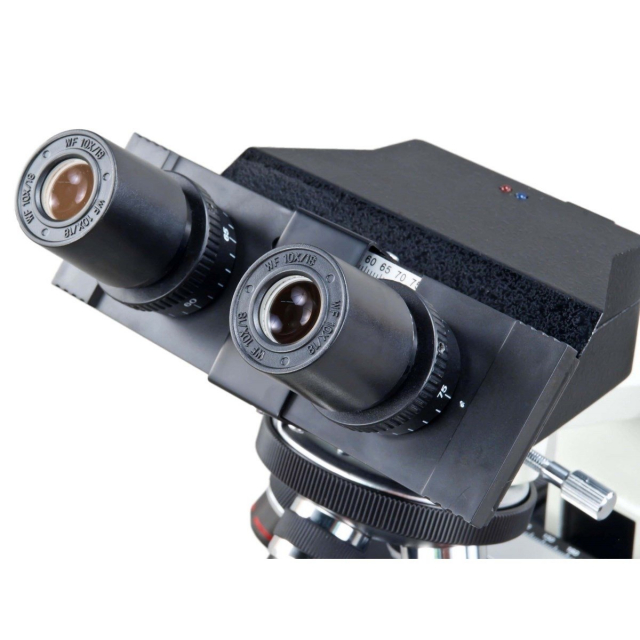

Digital binocular viewing head with adjustable diopter interpupillary distance
Sturdy metal framework and glass optics
Rubber cover on the fine focus knob
Black palm rest on the base

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Technical Details

Reviews

Microscope Type

Compound

Magnifying Type

Multi-Power

Magnification Power

40X-100X-250X-400X-1000X-2500X

Head Type

Binocular

Objective Power

4X, 10X, 40X, 100X

Eyepiece Power

10X, 25X

Eyepieces

Widefield WF10X/18 and WF25X

Objectives

Achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil)

Viewing Head

45° Inclined 360° swiveling trinocular

Interpupillary Distance

Sliding adjustable 2-3/16" ~ 2-15/16" (55mm ~ 75mm)

Diopter

Adjustable on both eyetubes

Digital Camera

USB high resolution Built-in 2048x1536 pixel (3.0MP)

Nosepiece

Revolving quadruple

Stage

Mechanical double layer
Size: 5-1/2" x 5-1/2" (140mm x 140mm)
X-Y stroke (travel range): 3" x 2" (75mm x 50mm)

Focus

Coaxial coarse and fine knobs on both sides

Condenser and Diaphragm

NA1.25 Abbe condenser with iris aperture diaphragm

Transmitted (Lower) Illuminator

6V/20W halogen, intensity adjustable

Power Supply

AC 100V~240V 0.2/0.1A 50/60Hz worldwide range (US and Canada plug)

Dimension of Microscope

15-3/8" x 10-1/4" x 7-7/8" (39cm x 26cm x 20cm)

Net Weight

12 lbs (5.45 kg)

Shipping Weight

15 lbs (7 kg)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Microscope Type

Compound

Magnifying Type

Multi-Power

Magnification Power

40X-100X-250X-400X-1000X-2500X

Head Type

Binocular

Objective Power

4X, 10X, 40X, 100X

Eyepiece Power

10X, 25X

Eyepieces

Widefield WF10X/18 and WF25X

Objectives

Achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil)

Viewing Head

45° Inclined 360° swiveling trinocular

Interpupillary Distance

Sliding adjustable 2-3/16" ~ 2-15/16" (55mm ~ 75mm)

Diopter

Adjustable on both eyetubes

Digital Camera

USB high resolution Built-in 2048x1536 pixel (3.0MP)

Nosepiece

Revolving quadruple

Stage

Mechanical double layer
Size: 5-1/2" x 5-1/2" (140mm x 140mm)
X-Y stroke (travel range): 3" x 2" (75mm x 50mm)

Focus

Coaxial coarse and fine knobs on both sides

Condenser and Diaphragm

NA1.25 Abbe condenser with iris aperture diaphragm

Transmitted (Lower) Illuminator

6V/20W halogen, intensity adjustable

Power Supply

AC 100V~240V 0.2/0.1A 50/60Hz worldwide range (US and Canada plug)

Dimension of Microscope

15-3/8" x 10-1/4" x 7-7/8" (39cm x 26cm x 20cm)

Net Weight

12 lbs (5.45 kg)

Shipping Weight

15 lbs (7 kg)

Note
