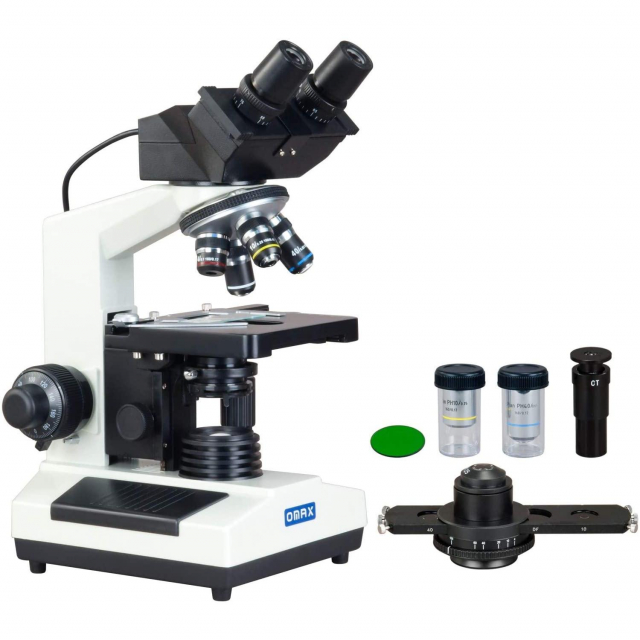

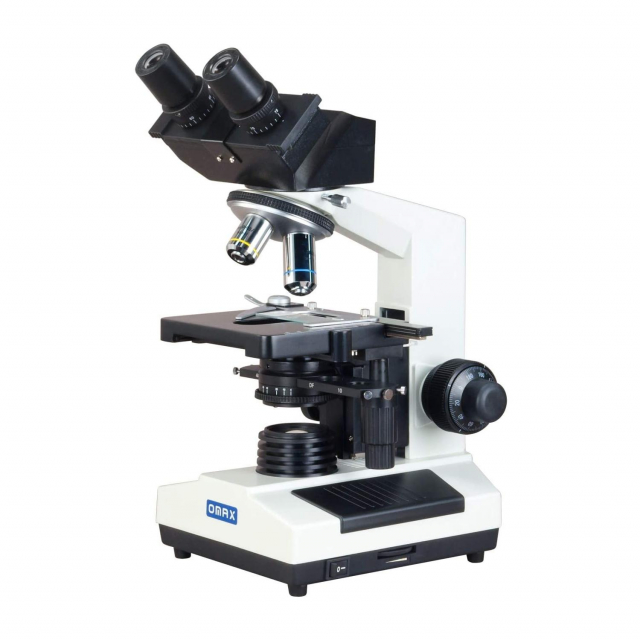

Microscope Type | Compound |
Magnifying Type | Multi-Power |
Magnification Power | 40X-100X-250X-400X-1000X-2500X |
Total Magnification Phase Contrast | 100X-250X-400X-1000X |
Head Type | Binocular |
Objective Power | 4X, 10X, 40X, 100X |
Eyepiece Power | 10X, 25X |

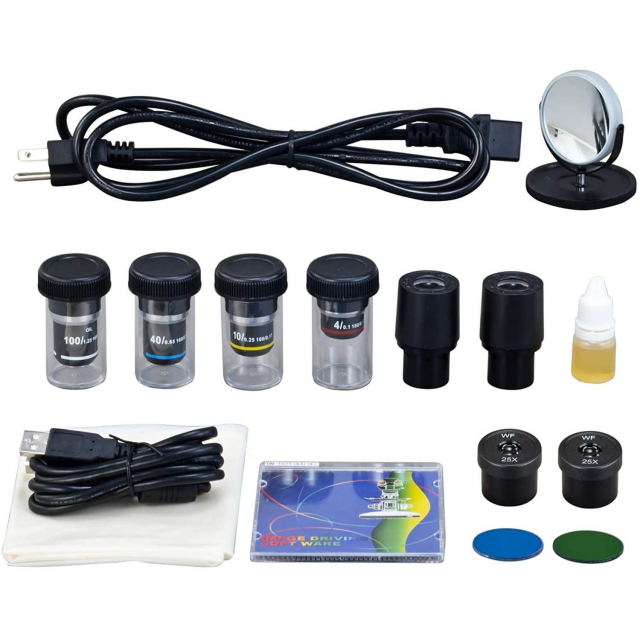

Eyepieces | Widefield WF10X/18 and WF25X |
Objectives | Achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil) |
PLAN Phase Contrast Objectives | PH10X, PH40X (S) |

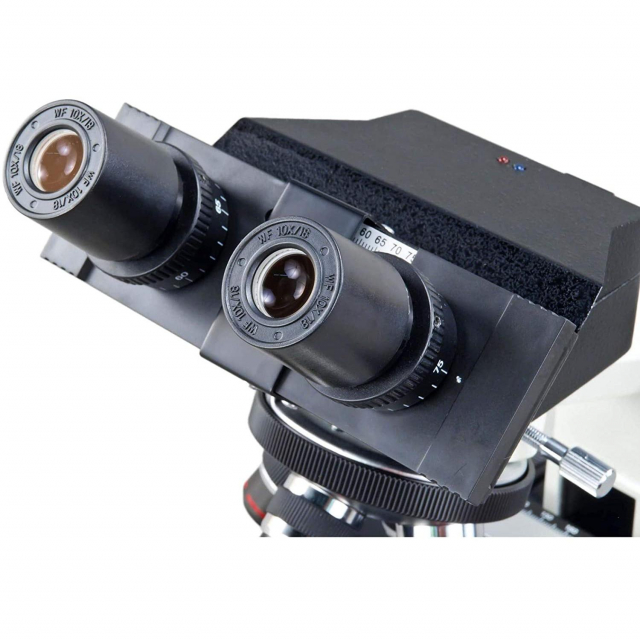

Viewing Head | 45° Inclined 360° swiveling trinocular |
Interpupillary Distance | Sliding adjustable 2-3/16" ~ 2-15/16" (55mm ~ 75mm) |
Diopter | Adjustable on both eyetubes |
Digital Camera | - Built-in digital camera
- Imaging device: 3.0 mega pixels, 1/2.5" CMOS
- Effective pixels: 2048x1536
- Maximum still image resolution: 2048x1536 pixels
- Frame rate: 4 frames per second at 2048x1536, 10 frames per second at 1024x768
- Interface: USB2.0 ( 480MB/second)
- SNR: >40dB
- Software compatible with Windows and Mac OS X
|
Nosepiece | Revolving quadruple |

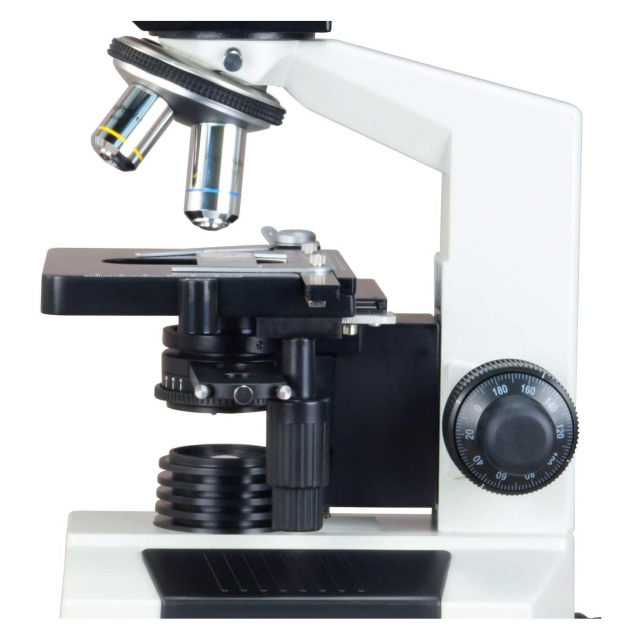

Stage | - Mechanical stain-resistant double layer size: 5-1/2" x 5-1/2" (140mm x 140mm)
- Translation range: 3" x 2" (75mm x 50mm)
|
Focus | Coaxial coarse and fine knobs on both sides |
Condenser and Diaphragm | Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm |
Transmitted (Lower) Illuminator | 20W halogen, intensity adjustable |

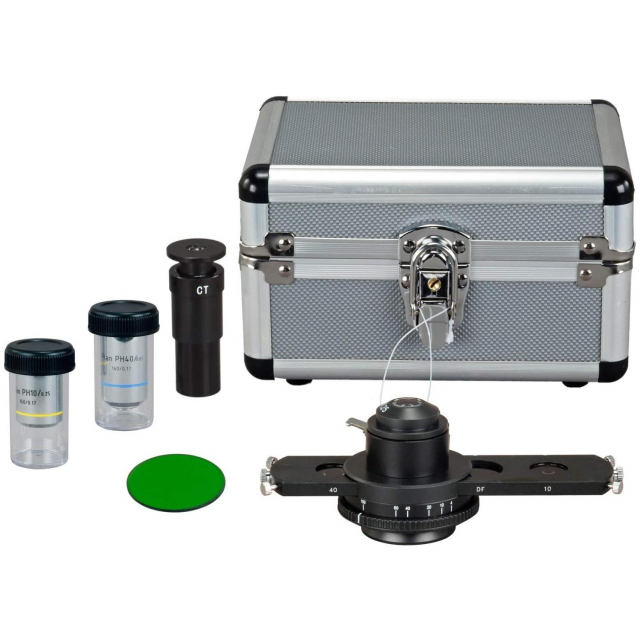

Phase Contrast Kit | - NA1.25 condenser with iris diaphragm and filter holder
- 37mm mounting size in diameter
- Sliding switch
- Four positions: darkfield (DF), brightfield (BF), PH10/20, PH40
- Each phase contrast condenser can be centered individually
- Centering telescope: 23.2mm
|
Power Supply | AC 100V~240V 0.2/0.1A 50/60Hz worldwide range (US and Canada plug) |
Carrying Case | Aluminum frame with sturdy walls and form cut foam compartments |
Dimensions | 15-3/8" x 10-1/4" x 7-7/8" (39cm x 26cm x 20cm) |
Dimensions of Phase Contrast Kit | 7-1/2" x 5-1/8" x 4-3/4" (19 cm x 13 cm x 12 cm) |
Shipping Weight | 15 lb (7 kg) and 5 lb (2 kg) |
