Type:: Type: Microscope with Dry Darkfield Condenser
Illumination:: Illumination: Replaceable 3W LED Light

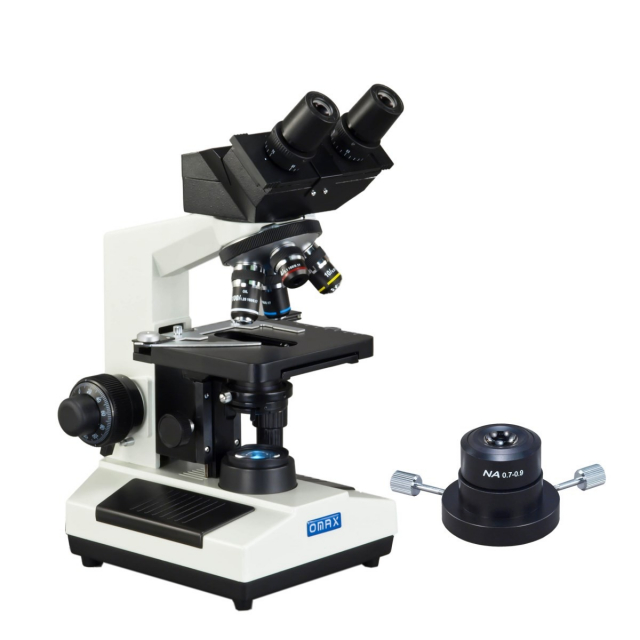

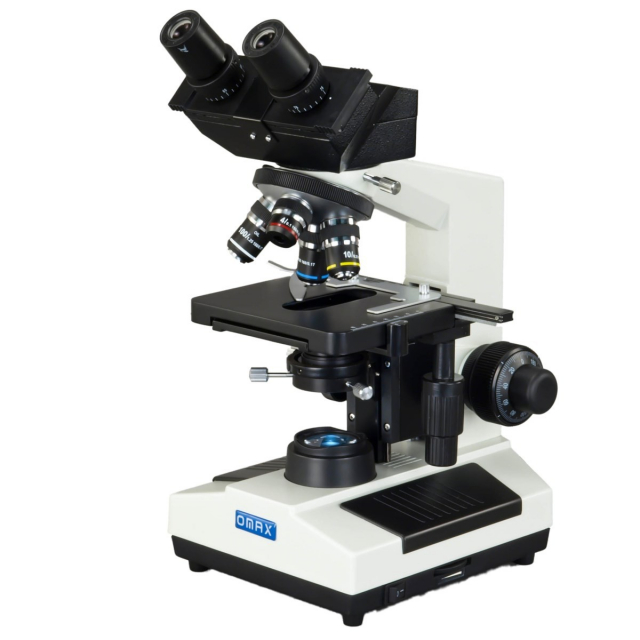

OMAX, MD827Z30L-A191, 40X-2500X Built-in 3MP Digital Camera Compound LED Microscope and Dry Darkfield Condenser

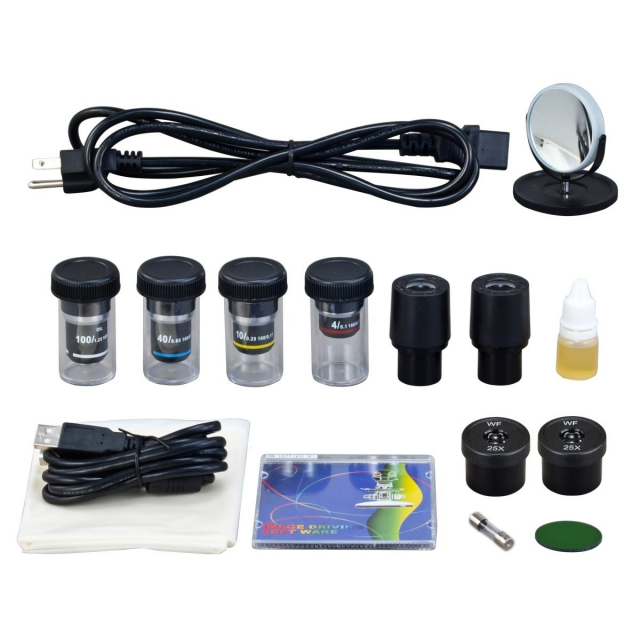

MD827Z30L-A191 Includes Only:

Digital binocular microscope head
Microscope stand
4 objectives: 4X, 10X, 40X, 100X
A pair of eyepieces WF10X/18
A pair of eyepieces WF25X
A bottle of Immersion oil
Power cord (US and Canada standard)
Dust cover
Color filters
Extra fuses
Mirror
CD (camera driver and software)
USB2.0 cable
Dry darkfield condenser

This digital binocular compound LED microscope with darkfield and brightfield microscope system and a LED illumination with variable intensity offers magnifications from 40X to 2500X. The USB digital imaging system captures still microscope images and live video on computer without the hassle of setting up the digital camera. Software compatible with Windows can also be used to make measurements. You can also view and capture the images on iMac or Macbook with Mac OS. It's easy to replace the LED lamp by your own. The darkfield microscopy is good for teaching, demonstration, clinical examination and research purpose.

Features:

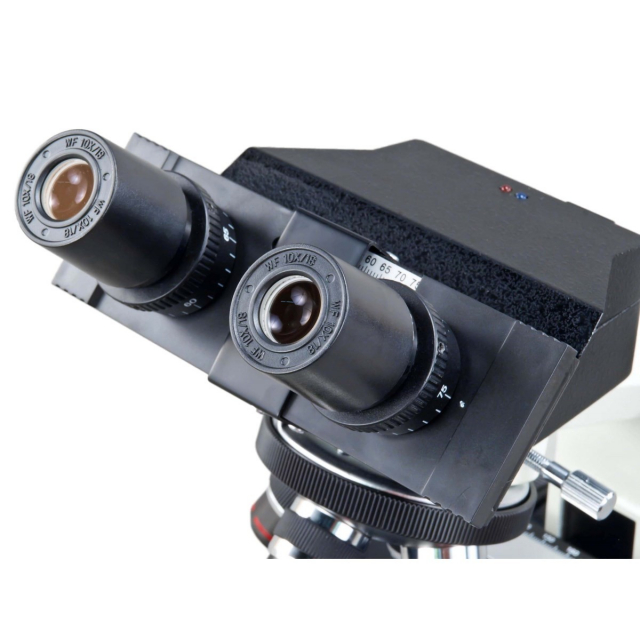

Built-in 3.0MP USB digital camera swiveling binocular viewing head
Replaceable 3W LED transmitted light with variable brightness intensity
6 magnification levels : 40X-100X-250X-400X-1000X-2500X
Large double layer mechanical stage and sturdy metal framework
Metal framework

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Return and Warranty

Please note that return requests for OMAX items must be submitted within 14 days after the delivery date.

Technical Details

Reviews

Microscope Type

Compound

Specialized

Darkfield

Magnifying Type

Multi-Power

Magnification Power

40X-100X-250X-400X-1000X-2500X

Head Type

Binocular

Objective Power

4X, 10X, 40X, 100X

Eyepiece Power

10X, 25X

Eyepieces

Widefield WF10X/18 and WF25X

Objectives

Achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil)

Viewing Head

45° Inclined 360° swiveling trinocular

Interpupillary Distance

Sliding adjustable 2-3/16" ~ 2-15/16" (55mm ~ 75mm)

Diopter

Adjustable on both eyetubes

Digital Camera

Built-in digital camera
Imaging device: 3.0 mega pixels, 1/2.5" CMOS
Effective pixels: 2048x1536
Maximum still image resolution: 2048x1536 pixels
Frame rate: 4 frames per second at 2048x1536, 10 frames per second at 1024x768
Interface: USB2.0 ( 480MB/second)
SNR: >40dB
Software compatible with Windows and Mac OS X

Nosepiece

Revolving quadruple

Stage

Mechanical stain-resistant double layer size: 5-1/2" x 5-1/2" (140mm x 140mm)
Translation range: 3" x 2" (75mm x 50mm)

Focus

Coaxial coarse and fine knobs on both sides

Brightfield Condenser

Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm

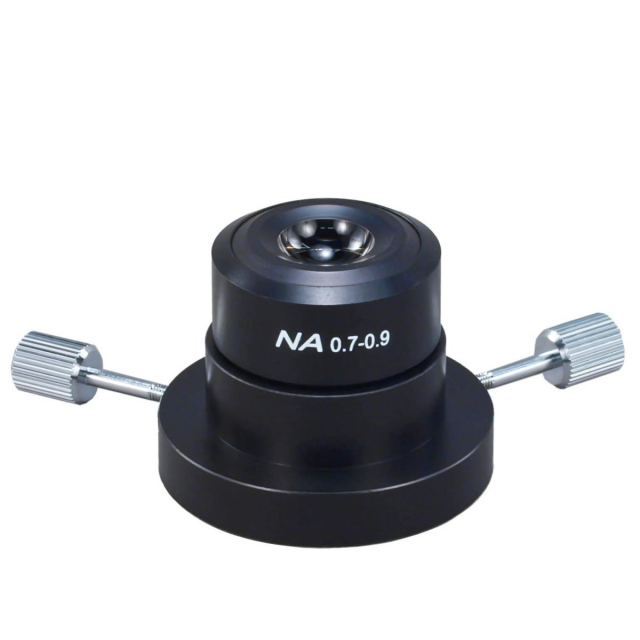

Dry Darkfield Condenser

NA0.7-0.9

Illumination

Transmitted (lower), replaceable 3W LED light, variable intensity

Power Supply

AC 100V~240V 0.2/0.1A 50/60Hz worldwide range (US and Canada plug)

Dimension of Microscope

15-3/8" x 10-1/4" x 7-7/8" (39cm x 26cm x 20cm)

Shipping Weight

15 lb (7 kg)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Microscope Type

Compound

Specialized

Darkfield

Magnifying Type

Multi-Power

Magnification Power

40X-100X-250X-400X-1000X-2500X

Head Type

Binocular

Objective Power

4X, 10X, 40X, 100X

Eyepiece Power

10X, 25X

Eyepieces

Widefield WF10X/18 and WF25X

Objectives

Achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil)

Viewing Head

45° Inclined 360° swiveling trinocular

Interpupillary Distance

Sliding adjustable 2-3/16" ~ 2-15/16" (55mm ~ 75mm)

Diopter

Adjustable on both eyetubes

Digital Camera

Built-in digital camera
Imaging device: 3.0 mega pixels, 1/2.5" CMOS
Effective pixels: 2048x1536
Maximum still image resolution: 2048x1536 pixels
Frame rate: 4 frames per second at 2048x1536, 10 frames per second at 1024x768
Interface: USB2.0 ( 480MB/second)
SNR: >40dB
Software compatible with Windows and Mac OS X

Nosepiece

Revolving quadruple

Stage

Mechanical stain-resistant double layer size: 5-1/2" x 5-1/2" (140mm x 140mm)
Translation range: 3" x 2" (75mm x 50mm)

Focus

Coaxial coarse and fine knobs on both sides

Brightfield Condenser

Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm

Dry Darkfield Condenser

NA0.7-0.9

Illumination

Transmitted (lower), replaceable 3W LED light, variable intensity

Power Supply

AC 100V~240V 0.2/0.1A 50/60Hz worldwide range (US and Canada plug)

Dimension of Microscope

15-3/8" x 10-1/4" x 7-7/8" (39cm x 26cm x 20cm)

Shipping Weight

15 lb (7 kg)
