OMAX, MD82EZ10-A188V-SCP, 40X-2500X Built-in 1.3MP Digital Binocular Compound LED Microscope with Case, Slides, Lens Paper

MD82EZ10-A188V-SCP Includes Only:

Digital binocular microscope
4 DIN objectives: 4X, 10X, 40X, 100X
A pair of eyepieces WF10X/18
A pair of eyepieces WF25X
A bottle of Immersion oil
AC adapter (US and Canada standard)
Dust cover
Color filters
CD (driver and software)
USB2.0 cable
One vinyl carrying case
One pack of blank glass slides
One pack of cover slips
One booklet of lens cleaning paper

This binocular compound LED microscope with built-in 1.3MP digital camera offers magnifications: 40X-100X-250X-400X-1000X-2500X. The 1280 x1024 pixels USB digital imaging system that captures still microscope images and live video on computer. Software compatible with Windows can also be used to make measurements. This type of microscopy is perfect for teaching demonstration and clinical examination, laboratories and advanced applications.

Features:

Built-in 1.3MP USB digital camera with advanced software applications
Digital binocular viewing head with adjustable interpupillary distance
Double layer mechanical stage with NA1.25 Abbe condenser and iris diaphragm
Variable intensity transmitted LED light and coaxial coarse and fine focus knobs

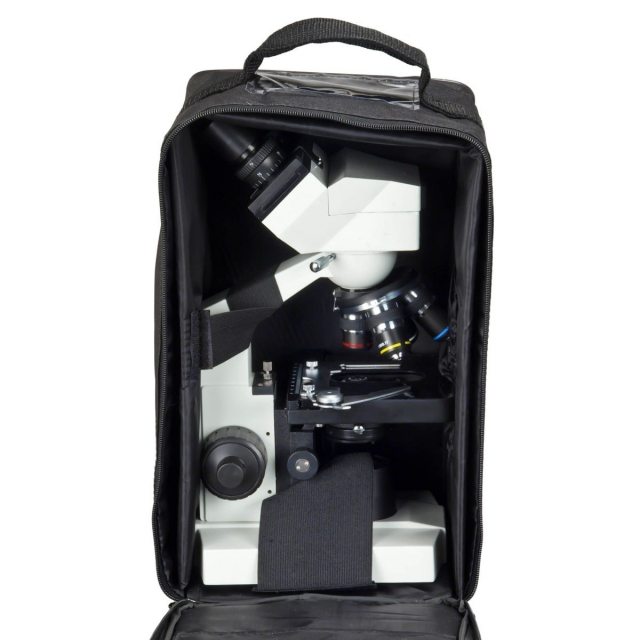

Vinyl carrying case with blank slides and cover slips and lens cleaning paper
All metal mechannical components

Report incorrect product information

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

All sales are final

These are made-to-order items.
This product is not eligible for return or exchange unless defective.
The average lead-time is 1 or 2 weeks.

Return and Warranty

Please note that return requests for OMAX items must be submitted within 14 days after the delivery date.

Technical Details

Reviews

Microscope Type

Compound

Magnifying Type

Multi-Power

Application

Veterinary, Laboratory, Teaching/Training

Magnification Power

40X-100X-250X-400X-1000X-2500X

Head Type

Binocular

Objective Power

4X, 10X, 40X, 100X

Eyepiece Power

10X, 25X

Eyepieces

Widefield WF10X/18 and WF25X

Objectives

Achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil)

Viewing Head

45° Inclined 360° swiveling trinocular

Interpupillary Distance

Sliding adjustable 2-3/16" ~ 2-15/16" (55mm ~ 75mm)

Diopter

Adjustable on both eyetubes

Digital Camera

Built-in digital camera:
Imaging device: 1.3 mega pixels, 1/2.5" CMOS
Effective pixels: 1280x1024
Maximum still image resolution: 1280x1024 pixels
Frame rate: 6 frames per second at 1280x1024, 10 frames per second at 1024x768
Interface: USB2.0 ( 480MB/second)
SNR: >40dB
Software compatible with Windows and Mac OS X

Nosepiece

Revolving quadruple

Stage

Double layer X-Y mechanical stage with scales
Size: 4-1/2"x 4-15/16" (115mm x 125mm)
Travel range: 2-13/16" x 1-3/16" (70mm x 30mm)

Focus

Coaxial coarse and fine knobs on both sides

Condenser and Diaphragm

Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm

Illumination

Transmitted (lower), replaceable LED light, intensity adjustable

Power Supply

AC/DC adapter, 100V-240V (UL approved)

Carrying Case

Aluminum frame with sturdy walls and form cut foam compartments

Dimensions

13" x 9-1/16" x 7-1/8" (33cm x 23cm x 18cm)

Dimensions of Vinyl Carrying Case

13-3/8" x 7-7/8" x 7-1/4" (34cm x 20cm x 18.5cm)

Shipping Weight

11 lbs (5 kg) and 2 lbs (1 kg)

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Microscope Type

Compound

Magnifying Type

Multi-Power

Application

Veterinary, Laboratory, Teaching/Training

Magnification Power

40X-100X-250X-400X-1000X-2500X

Head Type

Binocular

Objective Power

4X, 10X, 40X, 100X

Eyepiece Power

10X, 25X

Eyepieces

Widefield WF10X/18 and WF25X

Objectives

Achromatic DIN 4X, 10X, 40X (S), 100X (S, Oil)

Viewing Head

45° Inclined 360° swiveling trinocular

Interpupillary Distance

Sliding adjustable 2-3/16" ~ 2-15/16" (55mm ~ 75mm)

Diopter

Adjustable on both eyetubes

Digital Camera

Built-in digital camera:
Imaging device: 1.3 mega pixels, 1/2.5" CMOS
Effective pixels: 1280x1024
Maximum still image resolution: 1280x1024 pixels
Frame rate: 6 frames per second at 1280x1024, 10 frames per second at 1024x768
Interface: USB2.0 ( 480MB/second)
SNR: >40dB
Software compatible with Windows and Mac OS X

Nosepiece

Revolving quadruple

Stage

Double layer X-Y mechanical stage with scales
Size: 4-1/2"x 4-15/16" (115mm x 125mm)
Travel range: 2-13/16" x 1-3/16" (70mm x 30mm)

Focus

Coaxial coarse and fine knobs on both sides

Condenser and Diaphragm

Abbe NA1.25 rack and pinion adjustment condenser with iris aperture diaphragm

Illumination

Transmitted (lower), replaceable LED light, intensity adjustable

Power Supply

AC/DC adapter, 100V-240V (UL approved)

Carrying Case

Aluminum frame with sturdy walls and form cut foam compartments

Dimensions

13" x 9-1/16" x 7-1/8" (33cm x 23cm x 18cm)

Dimensions of Vinyl Carrying Case

13-3/8" x 7-7/8" x 7-1/4" (34cm x 20cm x 18.5cm)

Shipping Weight

11 lbs (5 kg) and 2 lbs (1 kg)

Return and Warranty

Please note that return requests for OMAX items must be submitted within 14 days after the delivery date.

Note

Note: Please read description carefully. Do not base your order on the picture presented.
