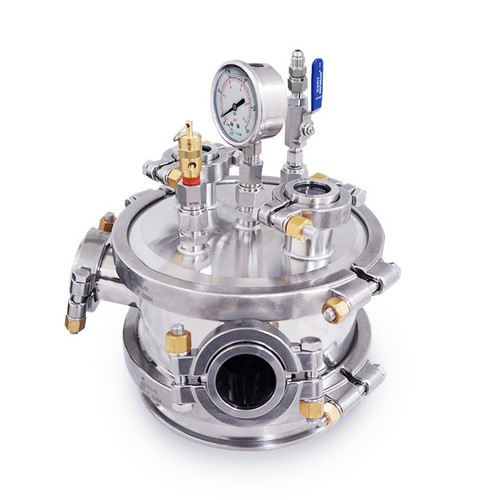

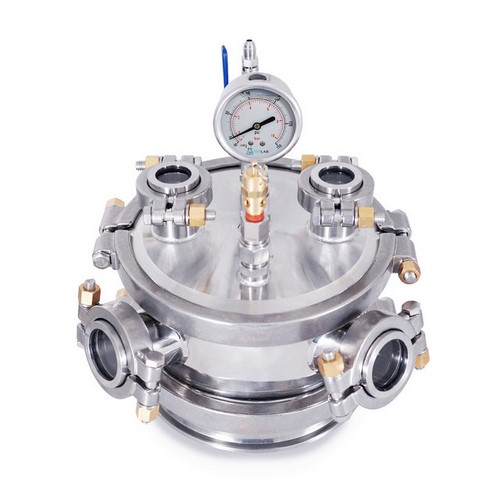

USA Lab DM8-L Dia-mond Miner 8"

DM8-L Includes Only:

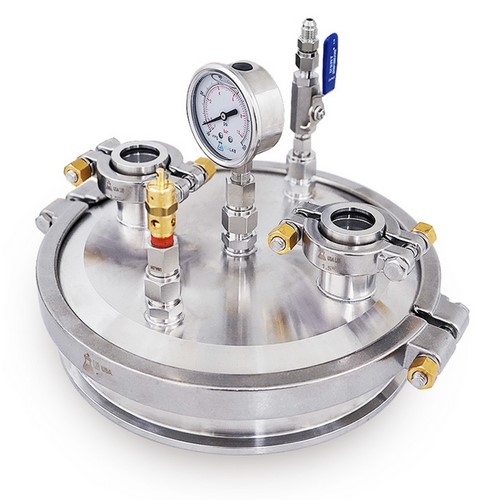

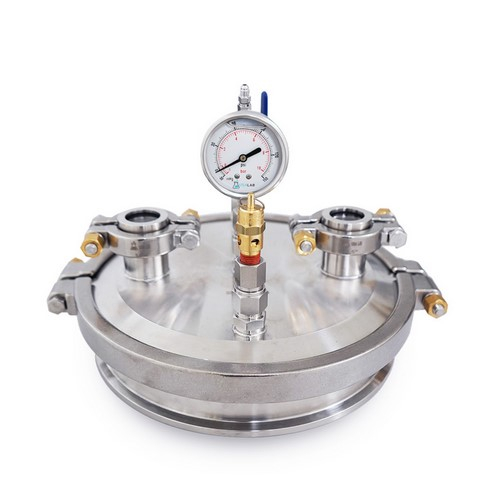

• Flat Lid w/ (3) 1/2" Compression Superlok and (2)1.5" TC
• Weld Base Spool Splatter Platter 8" x 2"
• 8" High Pressure Tri-Clamp x2
• 8" Buna-N Tri Clamp Gasket x2
• 1.5" High Pressure Tri-Clamp x2
• 1.5" Meta Sight Glass x2
• Superlok T-Port Reducer 1/2" - 1/4"
• Superlok 1/4" Tube X 1/4" MJIC
• Superlok 1/4" Compression Ball valve
• 1/4" Glycerin Compound Gauge
• ASME Safety Pressure Relief - 1/4" MNPT - 100PSI
• USA Lab Spool With Sight Glass
• 2" Meta Sigh Glass x2
• 2" High Pressure Triclamp x2

This 8" Dia-mond Miner is used for crystallizing botanical extracts into live resin terpene-rich sauce. Dia-mond mining is the crystallization of specific compounds that occurs when the compounds are suspended in a solution under specific temperatures and pressures. The premium extractor lid is pre-assembled and nitrogen tested for leaks to ensure the customer receives a leak and worry-free part to use on their extraction system. Remove the 8" x 2" splatter platter to easily remove dia-monds from your sauce mix. Glycerin filled compound gauge gives you an easy readout of pressure inside the vessel.
