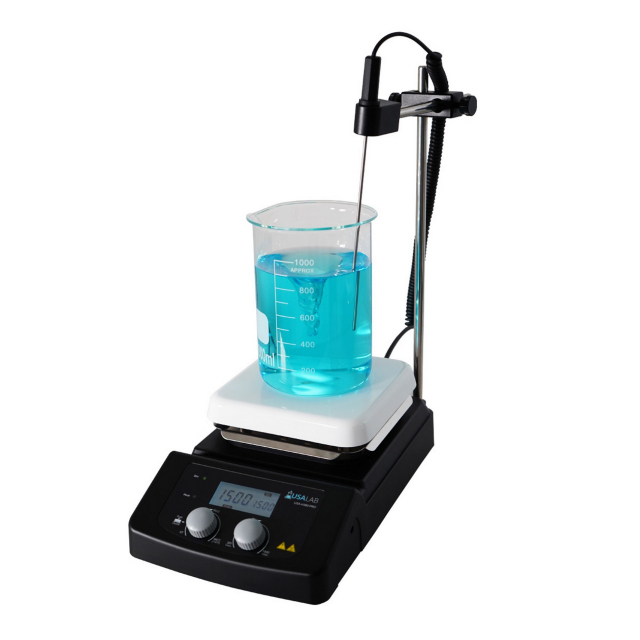

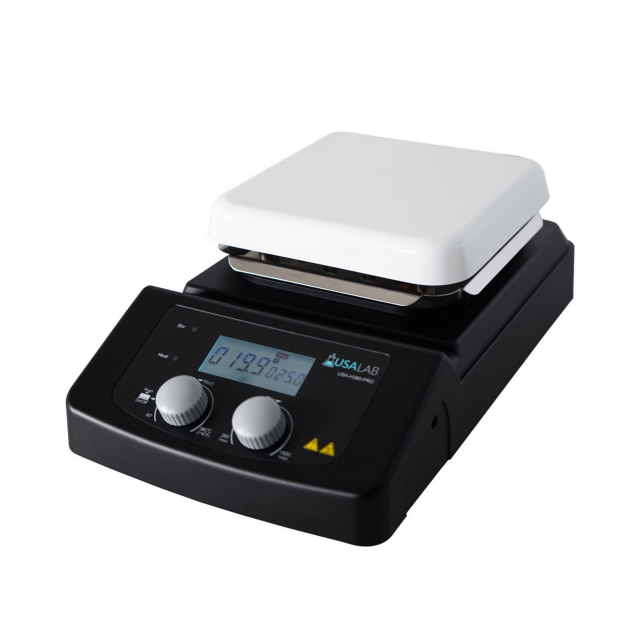

Buy USA Lab USA-H380-PRO, Hotplate Stirrer 380 5L TUV Certified

info@PrimeLabMed.com

1-855-590-6919
1-908-282-3482 (Intl.)

Features:

Maximum heating temperature: 380°C
High-resolution LCD displays actual temperature and speed
Brushless DC motor is maintenance-free
Aluminum cover with ceramic work plate for immediate heat transfer
External temperature control with PT1000 temperature sensor
Digital temperature regulation
Digital speed control with maximum speed up to 1500 rpm
Maximum stirring quantity: 5L H₂O

H380 is one of the most technically advanced hotplate-stirrers in the marketplace. With independent back-lit LCD displays for both heat and stirring functions and PID technology and controls temperature at +/- 1ºC. It also incorporates a DC brushless motor for extremely long life and excellent performance. The H380's, 380°C magnetic hotplate stirrers include all leading safety standards and features for superior ease of use and are cost-effective. They are widely used in chemical synthesis, physical and chemical analysis, biopharmaceuticals, etc.

See more product information See less

We aim to show you accurate product information. Here you will find what the manufacturers have provided us with. See our disclaimer.

Technical Details

Reviews

Work Plate Dimension	140 mm x 140 mm \| 5.5" x 5.5"
Work Plate Material	Glass Ceramic
Motor Type	Brushless DC Motor
Power	510 W
Heating Output	500 W
Voltage	100 - 120V / 60Hz
Stirring Positions	1
Max. Stirring Volume [H²O]	5 L
Max. Magnetic Bar Length	50 mm
Speed Range	200 - 1500 rpm
Display Type	LCD
Heating Temperature Range	Ambient +5°C - 380°C
Overheat Protection	420°C
Temperature Display Accuracy	±1°C
External Temperature Sensor	PT1000 (accuracy ±0.5°C)
Control Accuracy of Sensor	±20 rpm
Dimension [W x D x H]	320 x 180 x 108 mm \| 12.6 x 7 x 4.25"
Permissible Ambient Temperature	5 - 40°C

Notes

* Free Ground Shipping within the continental U.S. only (excludes Alaska, Hawaii, PO Boxes and APO/FPO addresses).

Product Details

Work Plate Dimension	140 mm x 140 mm \| 5.5" x 5.5"
Work Plate Material	Glass Ceramic
Motor Type	Brushless DC Motor
Power	510 W
Heating Output	500 W
Voltage	100 - 120V / 60Hz
Stirring Positions	1
Max. Stirring Volume [H²O]	5 L
Max. Magnetic Bar Length	50 mm
Speed Range	200 - 1500 rpm
Display Type	LCD
Heating Temperature Range	Ambient +5°C - 380°C
Overheat Protection	420°C
Temperature Display Accuracy	±1°C
External Temperature Sensor	PT1000 (accuracy ±0.5°C)
Control Accuracy of Sensor	±20 rpm
Dimension [W x D x H]	320 x 180 x 108 mm \| 12.6 x 7 x 4.25"
Permissible Ambient Temperature	5 - 40°C

Note

Note: Please read description carefully. Do not base your order on the picture presented.
